Usage:

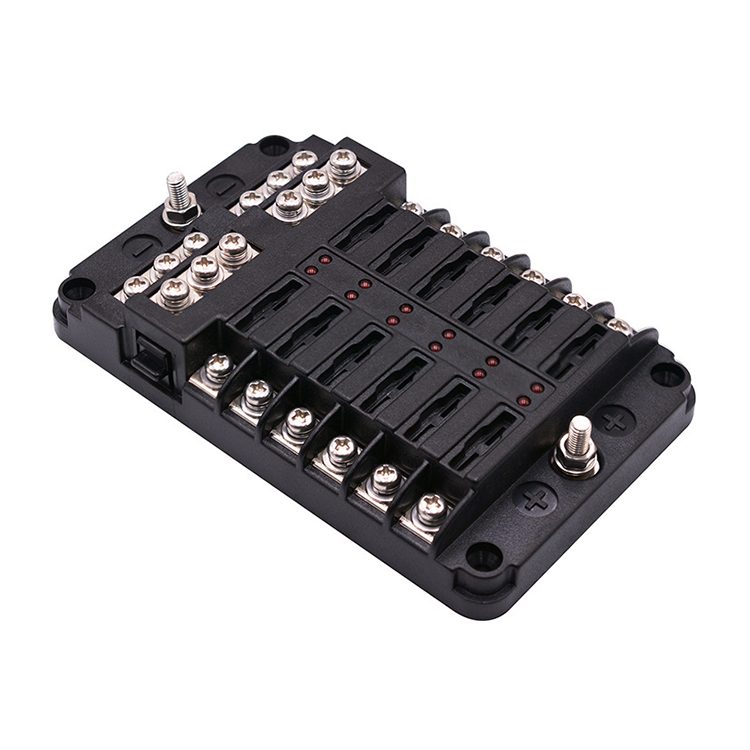

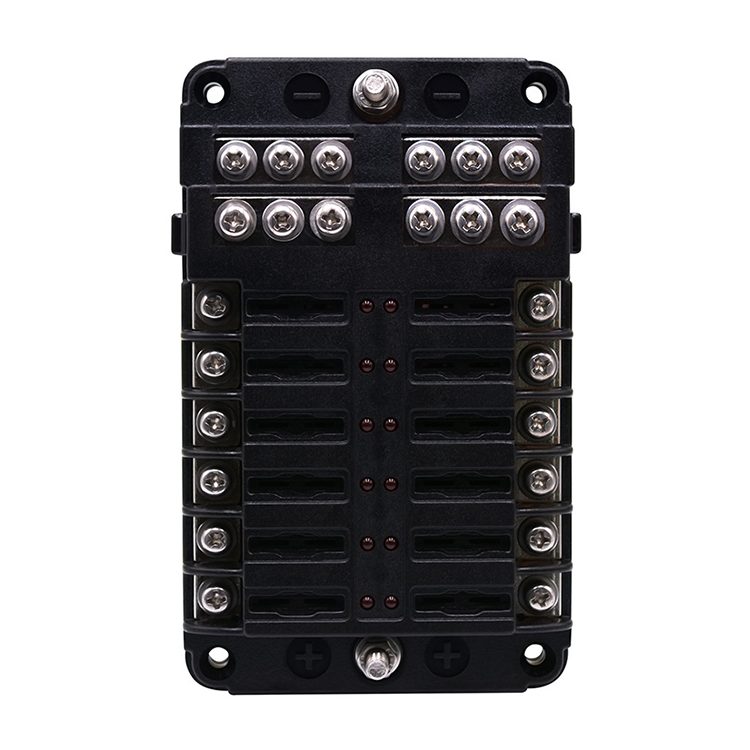

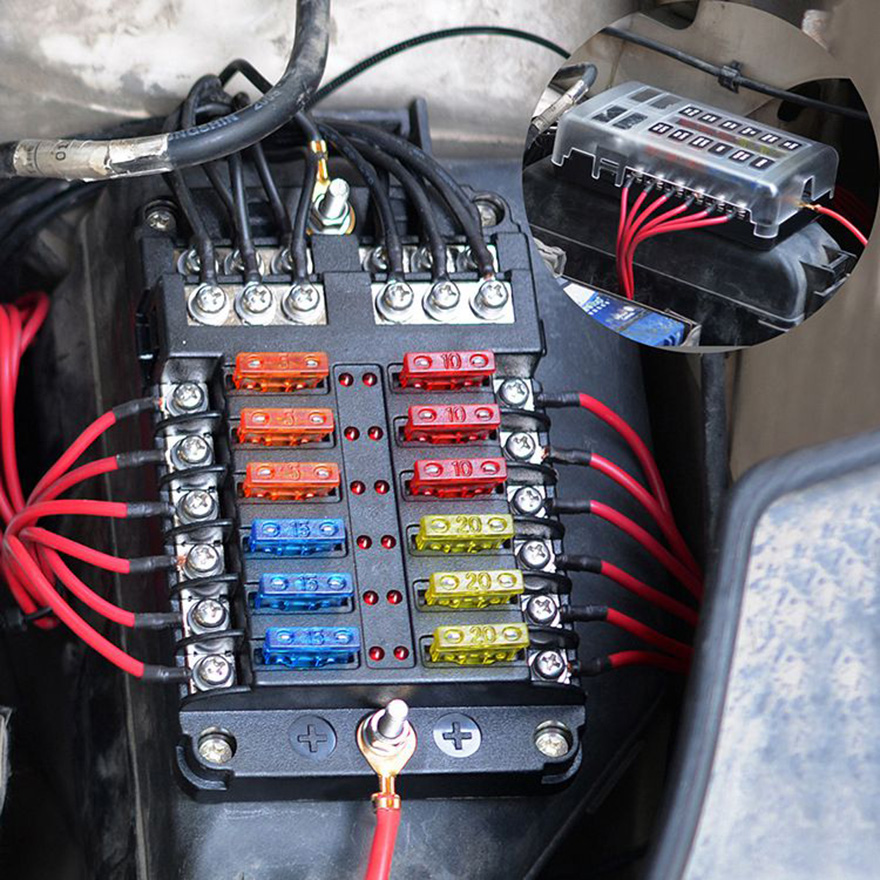

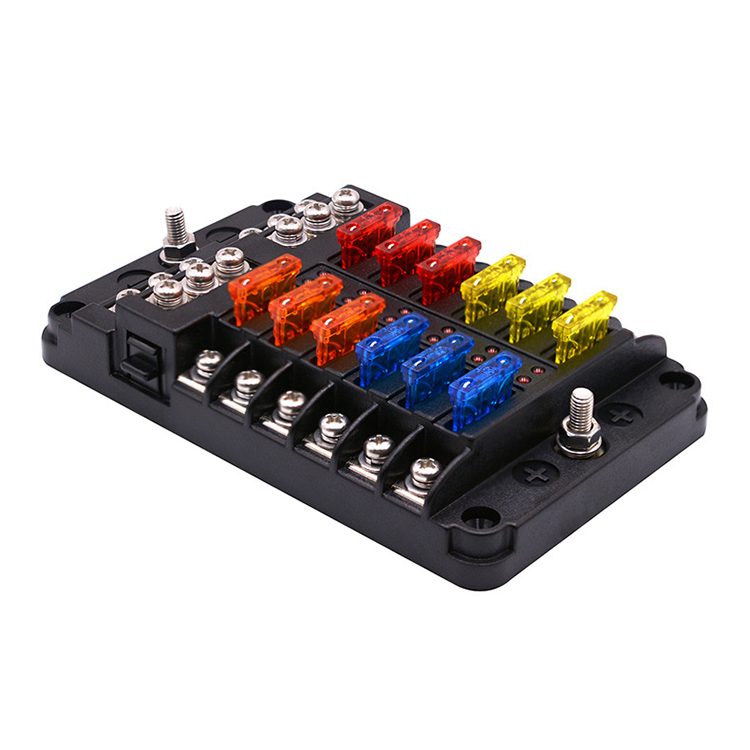

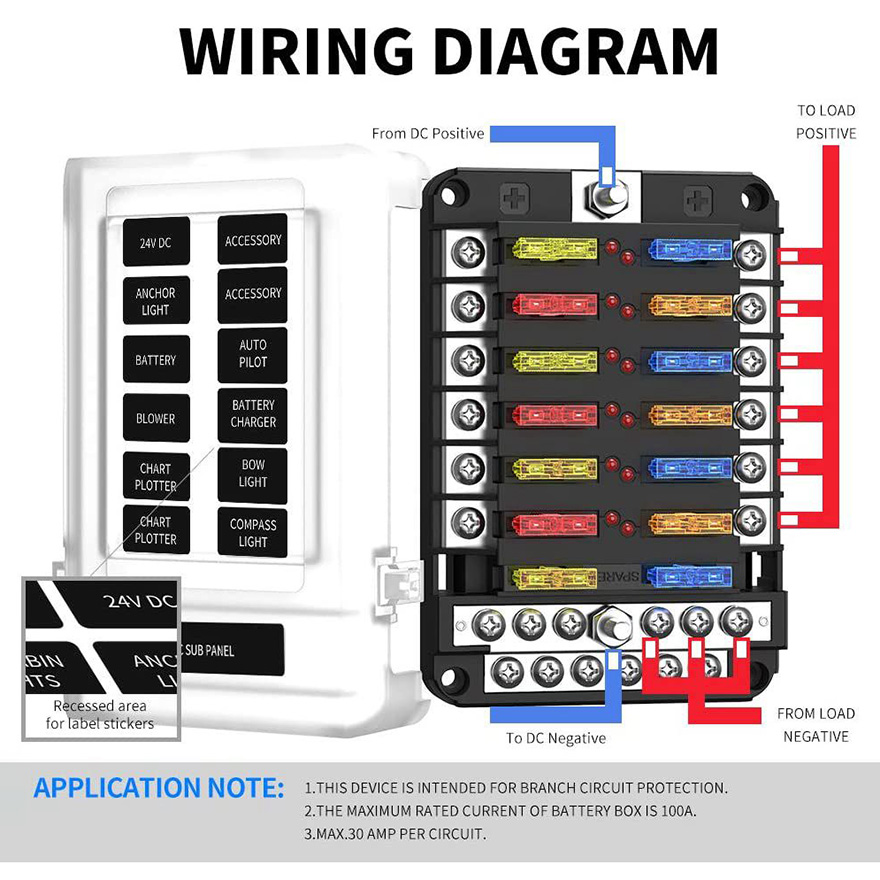

12 Way Blade Fuse Block for Automotive Cars Marine Boats,RVs,Trailers
Features:
1.PBT material, non-flammable and anti-aging; PC cover, non-yellowing.

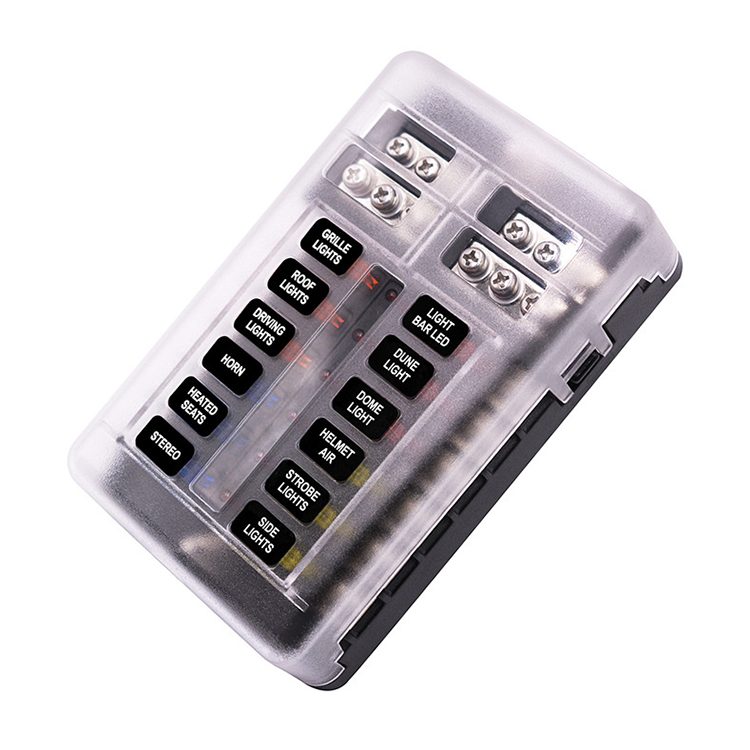

2.Easy to open insulating cover that provides access to fuses
3.Max operating voltage: 32V DC; Max 30A per circuit & 100A per panel.
4.Red Led indicates when fuse is broken.

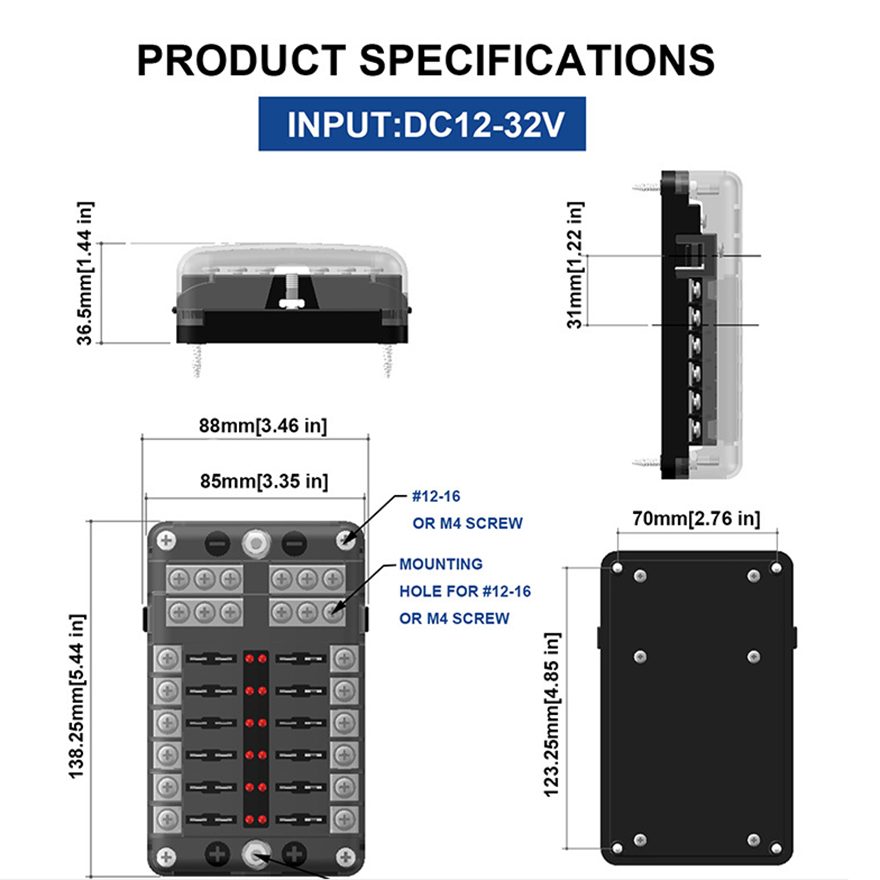

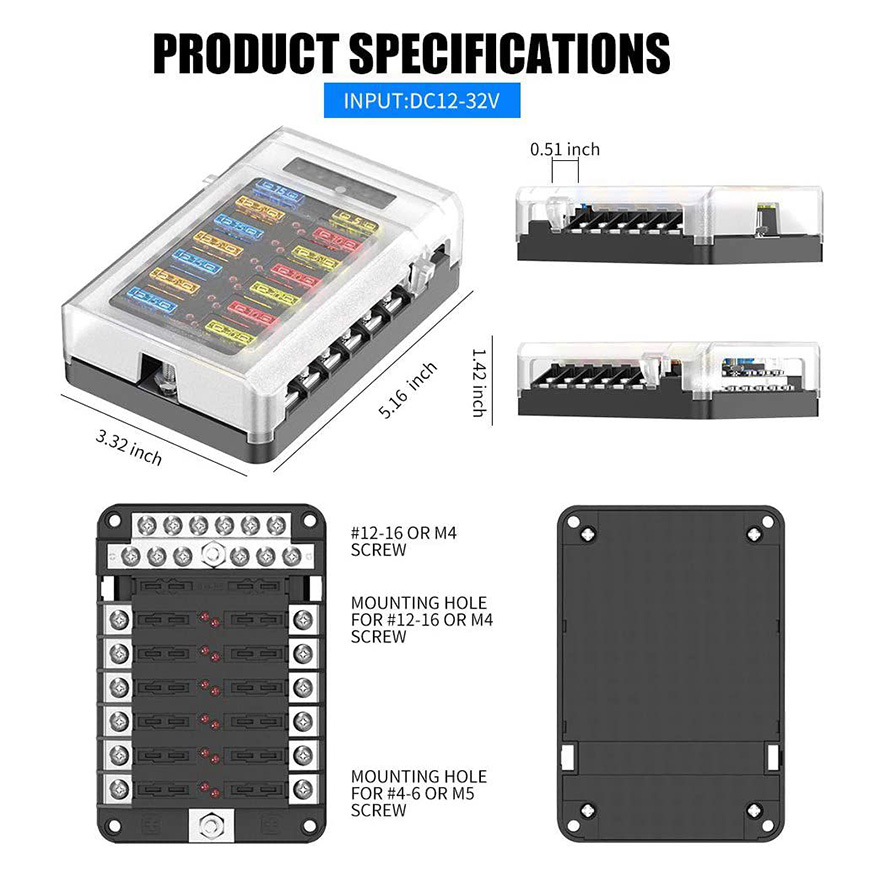

Technical Parameters:
| Model | ZY12FB-12 | |
| Brand | Zoyseay | |
| Rated voltage | 32V | |
| Current rating | Max 30A per circuit & 100A total | |
| Input wiresize | 4–6 AWG | |
| Output wiresize | 12-16AWG | |
| Waterproof rating | IP 65 | |
| Fuse | 1A 5A 10A 15A 20A 25A 30A | |
| LED | RED | |
| Material | Base | PBT |
| Cover | PC | |
| Screw | 304 SS | |
| Terminal | Tin plated copper | |
| Temperature rating | -20℃-85℃ | |
| Certification | CE and Rohs | |
Selection: Sheet Sticker, Fuses.
