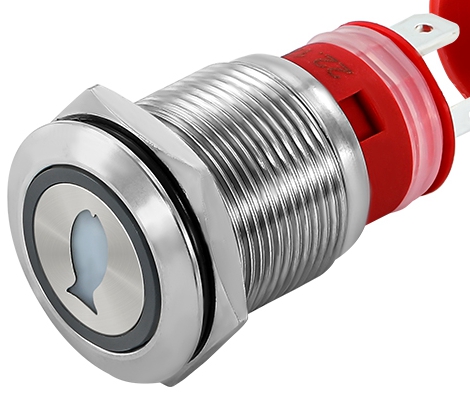

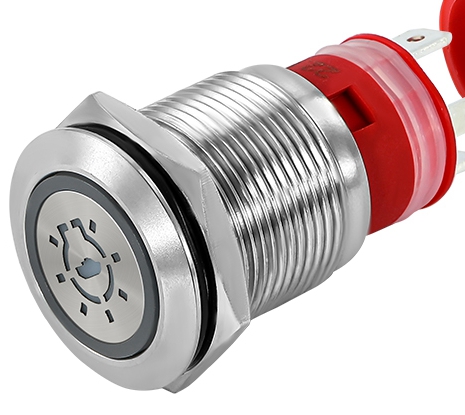

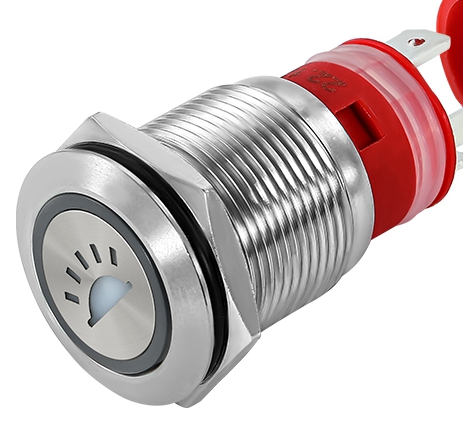

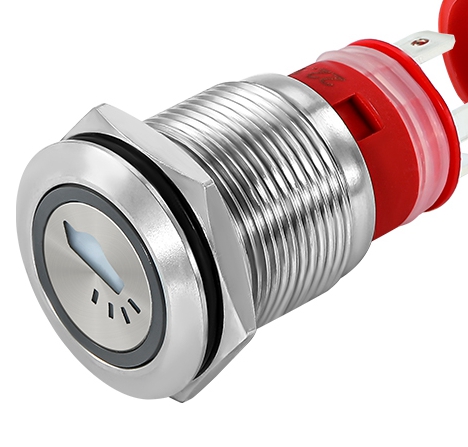

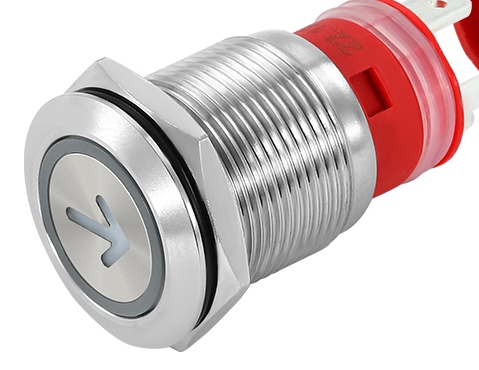

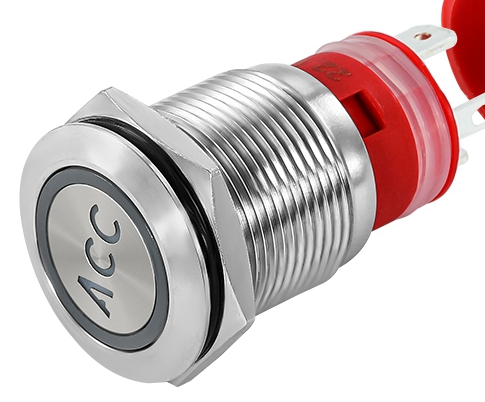

316L Push Button Switches Grade
Product Specification
| Mounting Hole | 19MM | |
| Max.Switch Rating | Ith :5A Ui : 250VAC/DC | |
| Material | Body | stainless steel / Black aluminium oxide |
| Button | stainless steel /Black aluminium oxide | |
| contact | Silver Alloy | |
| Base | PBT | |
| Head Shape | Flat Round Head | |
| Terminal Type | 5 Pin Terminal | |
| Mounting panel thickness | 1-10 mm | |
| Contact Configuration | 1NO 1NC | |
| Switch Operation | Momentary / Latching | |
| Contact Resistance | ≤ 50mΩ | |
| Insulation Resistance | ≥ 10000mΩ | |
| Dielectric Strength | 2000VAC | |
| Protection Level | IP 67 | |
| Environment Temperature | -20℃～+55℃ | |
| Mechanica Life | More than 1,000,000 cycles | |
| Electrical Life | More than 500,000 cycles | |
| Operation Distance | About 2.5mm | |
| Operating Pressure | 3-5N | |
| Torque | 5-14Nm | |
