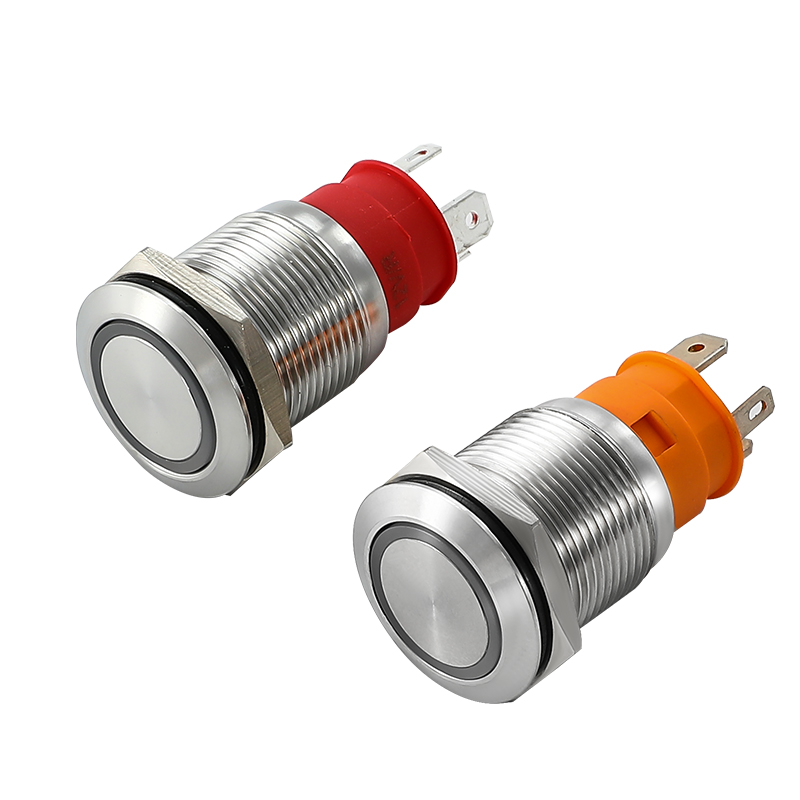

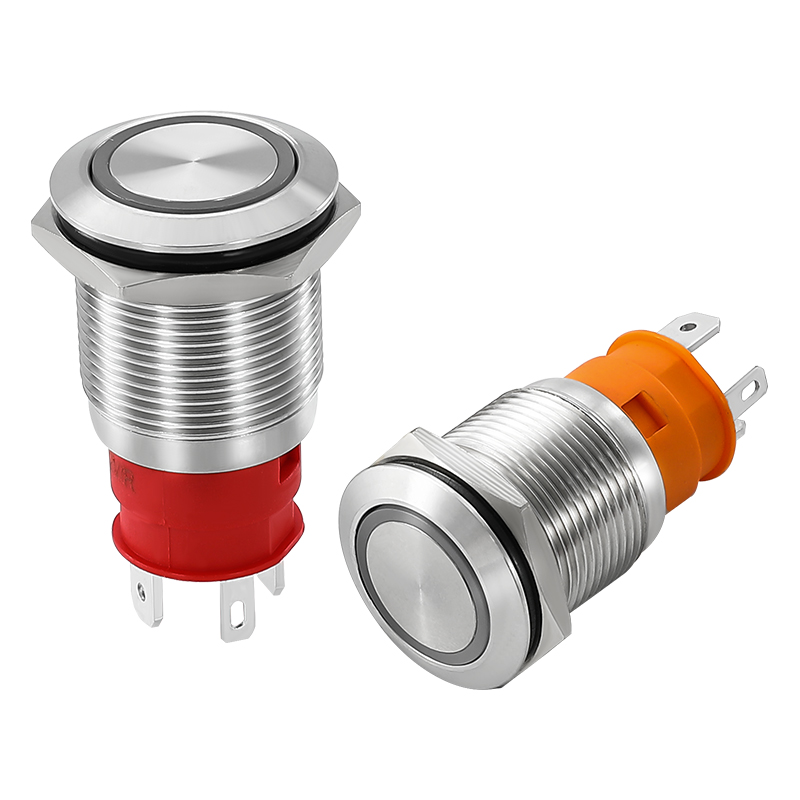

316L Marine-Grade Stainless Steel 20A Push Button Switch
Rating Voltage：250VAC/DC
Rating Current ： 20Amp
Body Material: 316 stainless steel, prection from salt spray
Mounting Hole Size: 19MM(3/4“), 22MM(7/8“)
Current rating： 20Amp
Body Material: 316 stainless steel, prection from salt spray
Base material: PBT, non-flammable
CE and Rohs approved.
316L Marine-Grade Stainless Steel 20A Push Button Switch
Rating Voltage：250VAC/DC
Rating Current ： 20Amp
Body Material: 316 stainless steel, prection from salt spray

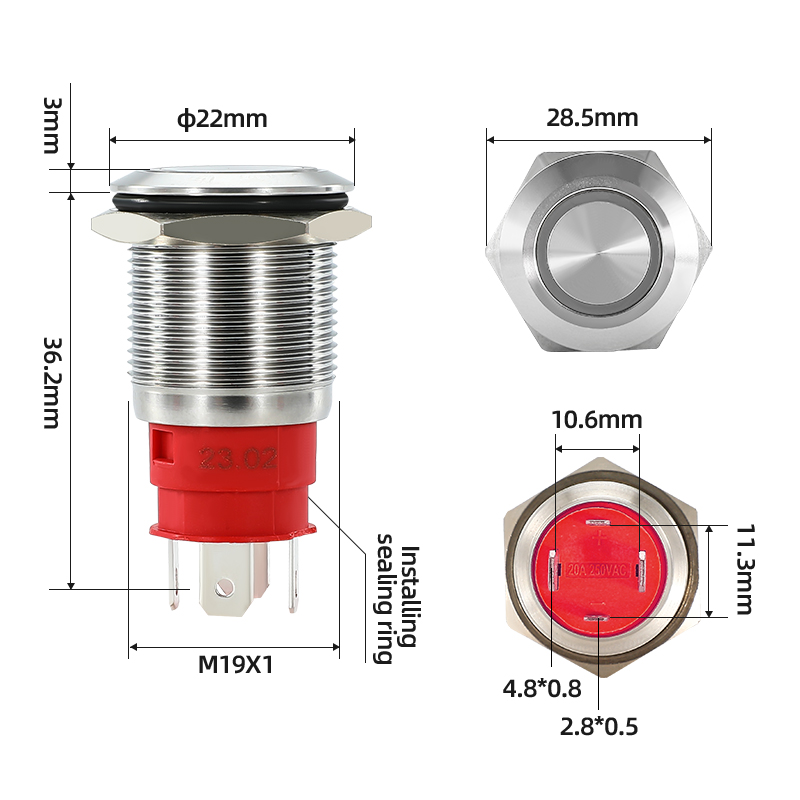

| Mounting Hole | 19MM | |
| Max.Switch Rating | Ith :15A 20A Ui : 250VAC/DC | |
| Material | Body | 316L Stainless Steel |
| Button | 316L Stainless Steel | |
| contact | Silver Alloy | |
| Base | PBT | |
| Head Shape | Flat round Head | |
| Terminal Type | 4 Pin Terminal (2.8*0.5mm) | |
| Mounting panel thickness | Momentary : 1-8mm / Latching:1-10mm | |
| Operation Distance | About 2.5mm | |
| Contact Configuration | Normally Open | |
| Switch Operation | Momentary / Latching | |
| Contact Resistance | ≤ 50mΩ | |
| Insulation Resistance | ≥ 1000mΩ | |
| Dielectric Strength | 2000VAC | |
| Protection Level | IP 67 | |
| Environment Temperature | -20℃～+55℃ | |
| Mechanica Life | More than 1,000,000 cycles | |
| Electrical Life | More than 10, 000 cycles | |
| Operating Pressure | About 5.5N | |
| Torque | 5-14Nm | |
