6 Way Blade Fuse Block for Automotive Cars Marine Boats,RVs,Trailers
Features:
1.PBT material, non-flammable and anti-aging; PC cover, non-yellowing.
- Easy to open insulating cover that provides access to fuses
- Max operating voltage: 32V DC; Max 20A per circuit & 75A per panel.
4.Red Led indicates when fuse is broken.
| Model | ZY06FB-06L | ||
| Brand | Zoyseay | ||
| Rated voltage | 32V | ||
| Current rating | Max 20A per circuit & 75A total | ||
| Input terminal rating | M5 thread studs | ||
| Input wiresize | 4–6 AWG | ||
| Output terminal rating | M4 thread studs | ||
| Output wiresize | 12-16AWG | ||
| Waterproof rating | IP 65 | ||
| Fuse | 1A 5A 10A 15A 20A 25A 30A | ||
| LED | RED | ||

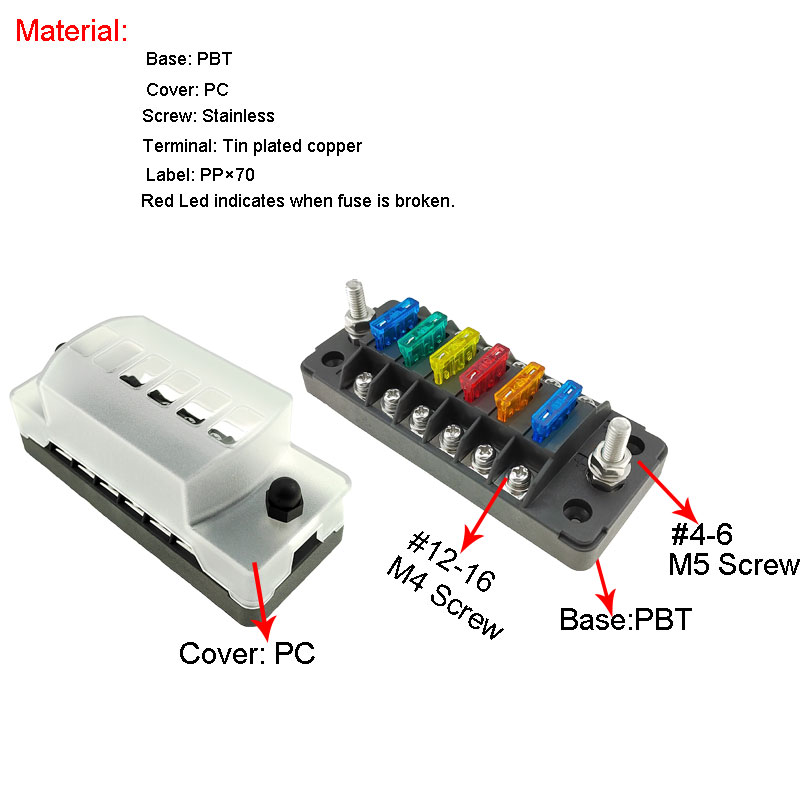

| Material | Base | PBT | |
| Cover | PC | ||
| Screw | 304 SS | ||
| Terminal | Tin plated copper | ||
| Temperature rating | -20℃-85℃ | ||
| Certification | CE and Rohs | ||

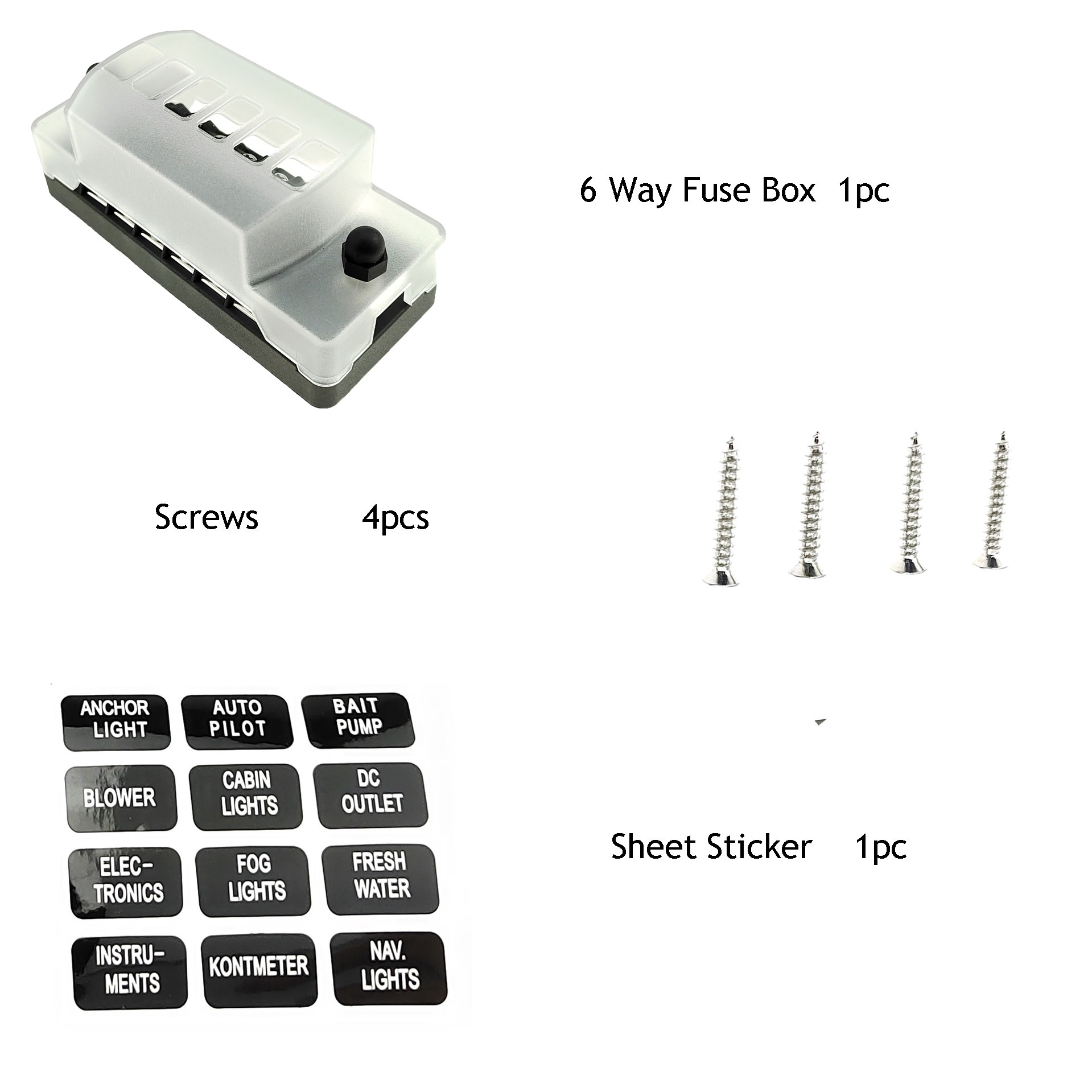

Selection:
Sheet Sticker, Fuses.
